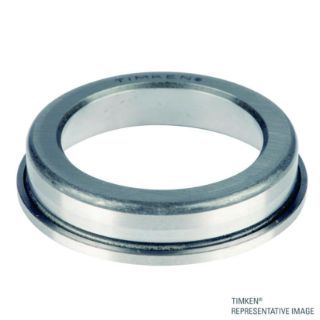

Actual Product May Vary From Image

18620B-2 TKN

Name: 18620B-2 TKN
Brand: Timken
SKU: 18620B-2 TKN
Price: 196.84 USD
Availability: OutOfStock

Tapered Roller Bearing Single Row Flanged Cup

Manufacturer: Timken

Manufacturer part number: 18620B-20024

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$196.84

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

Tapered Roller Bearing Single Row Flanged Cup | Imperial | 79.4 mm 3.1 in OD | 13.5 mm 0.5 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Single Cup
Bearing Material:	Steel
Bearing Type:	Single Cup
Component (I/R; O/R assembly):	Outer Ring
Flange Outside Diameter (in):	3.3086
Flange Outside Diameter (mm):	84.03844
Flange Thickness (in):	0.1406
Flange Thickness (mm):	3.57124
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	3.125
Outer Diameter (mm):	79.375
Outer Diameter Type:	Straight OD
Outer Race Width (in):	0.5313
Outer Race Width (mm):	13.49502
Overall Width (in):	0.5313
Overall Width (mm):	13.49502
Precision class:	Class 2 (Standard)
Raceway Style:	Tapered Roller Bearing
Row Type:	Single
