Actual Product May Vary From Image

18CH2267 MSG

Name: 18CH2267 MSG
Brand: Martin Sprocket & Gear
SKU: 18CH2267 MSG
Availability: OutOfStock

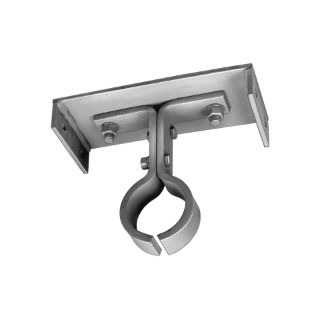

Martin 18CH2267 Conveyor Hanger, 226 Style, 18 in Dia Conveyor, 3-7/16 in Coupling

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 18CH2267

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Martin

Description

No. 226 hangers are designed for flush mounting inside the trough permitting dust-tight or weather-proof operation. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.

Martin Conveyor Hanger, 226 Style, 18 in Conveyor Diameter, 3-7/16 in Coupling, 3-1/2 in Mounting Hole Center, 5/8 x 1-3/4 in Bolt, 19 in Top Frame Length, 6 in Top Frame Width, 1/2 in Top Frame Thickness, 4 Mounting Bolts, 11/16 x 1-11/16 in Slot, Steel

Standards

CEMA Standard

Features

Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Bolt Size:	5/8 x 1-3/4 in
Conveyor Diameter:	18 in
Coupling Size:	3-7/16 in
Material:	Steel
Mounting Hole Center:	3-1/2 in
Number of Mounting Bolts:	4
Slot Size:	11/16 x 1-11/16 in
Style:	226
Top Frame Length:	19 in
Top Frame Thickness:	1/2 in
Top Frame Width:	6 in
