18D33-B LEV

Name: 18D33-B LEV
Brand: Leviton
SKU: 18D33-B LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton

Manufacturer part number:

18D33-B

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Cam Type Detachable Female Taper Nose

Description

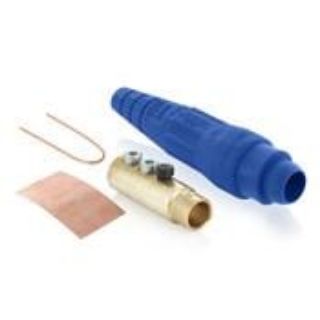

Leviton® Plug, Cam Type Detachable Female Taper Nose, Series: 18 Series, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Double Set Screw, Brass Contact, TPV Housing, NEMA 3R, 1-Pole, Blue, 1.72 in Dia x 6.77 in L

Application

Motor and Generator Splices, Mining and Construction Sites, Commercial and Navy Shipbuilding and Repair and Other Temporary Power Applications, Entertainment and Movie Industry, Concerts and Theme Parks, Carnival Equipment and Conventions Applications

Standards

CSA File No. 152105 | UL File No. E13399

Features

Color coded insulating sleeves for fast and easy phase identification
High conductivity positive, vibration proof connection provided by double cam design
Shatter and crack proof - high durometer thermoplastic elastomer (TPV) or neoprene rubber
Self compensating for wear - slit and cam in male contact provides spring action for longer usage
Hard thermoplastic screw provides strength and durability
Intermateable and with competitive cam type products can be retrofitted to existing locations and power distribution systems

Specifications

Amperage Rating:	400 A
Color:	Blue
Connection Type:	Double Set Screw
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	1.72 in Dia x 6.77 in L
Housing Material:	TPV
NEMA Rating:	NEMA 3R
Series:	18 Series
Specifications:	1-Pole
Voltage Rating:	600 VAC
Wire Size:	1/0 to 4/0 AWG
