18HB1-LR13 BRN

Name: 18HB1-LR13 BRN
Brand: Regal Rexnord
SKU: 18HB1-LR13 BRN
Availability: OutOfStock

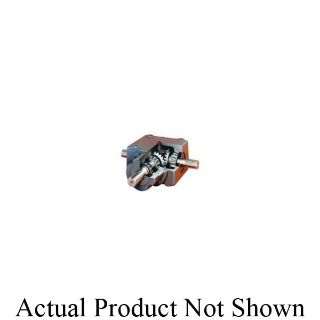

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1251917

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Straight Type LR

Description

Browning® cast iron bevel and spiral bevel gear reducers are constructed of rugged cast iron housings. These housings are line bored for precise gear and bearing alignment. To offer maximum performance, these reducers are designed with tapered roller and ball bearings. Browning® cast iron bevel and spiral bevel gear reducers are available in six sizes and ratios. These range from 1:1 to 3:1, with speed-up ratios available. Torque capacity ranges from 99 to 5942 in-lb.

Browning® Bevel Gear Reducer, Straight Type LR, 1.3:1 Gear Ratio, 1 hp, Shaft Input, Shaft Output, 1-1/2 in Dia x 3.063 in L Input, 1-1/2 in Dia x 3.094 in L Output, 1346.15 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/37.45 in-lb Output, 4-3/32 in Centre Distance, 3/8 x 3/16 in Keyway, 80 % Efficiency, Oil Lubrication, Surface Mount, Cast Iron, 16.094 in L x 15.656 in W x 8-3/4 in H

Application

Aggregate and Cement, Agriculture, Coal Power Generation, Food, Forestry, Metals, Minerals and Mining, Packaging Machinery, Pulp and Paper and Unit Handling Industries

Standards

AGMA Standard

Features

Rugged cast iron housings, line bored for precise gear and bearing alignment
Carburized alloy steel gears manufactured to AGMA standards for long life and quiet operation
Double-lip contact oil seals ride on hardened plunge ground shafts for leak free operation
Reducer size 18

Specifications

Centre Distance:	4-3/32 in
Country of Origin:	US
Dimensions:	16.094 in L x 15.656 in W x 8-3/4 in H
Efficiency:	80 %
Gear Ratio:	1.3:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Size:	1-1/2 in Dia x 3.063 in L
Input Type:	Shaft
Keyway Size:	3/8 x 3/16 in
Lubrication Type:	Oil
Material:	Cast Iron
Mounting Type:	Surface
Output Maximum Speed:	1346.15 rpm
Output Size:	1-1/2 in Dia x 3.094 in L
Output Type:	Shaft
Torque Rating:	36.013 in-lb Input/37.45 in-lb Output
