Actual Product May Vary From Image

18R22-E LEV

Name: 18R22-E LEV
Brand: Leviton Manufacturing
SKU: 18R22-E LEV
Availability: OutOfStock

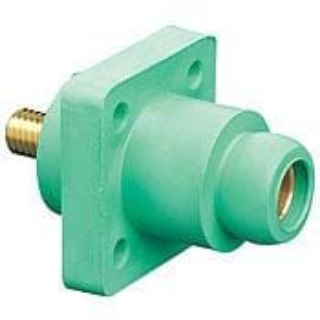

Leviton® 18R22-E 18 Series 90 deg Female Single Pole Receptacle, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud Connection

Manufacturer: Leviton Manufacturing

Manufacturer part number: 18R22-E

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

90 deg Female

Description

The 18 series ball nose pin and sleeve type plugs, receptacles and connectors are used by the broadcast industry in Canada, as well as the welding industry in the United States.

Leviton® Single Pole Receptacle, 90 deg Female, Series: 18 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud, Brass Contact, Santoprene™ TPV Housing, Panel Mount, Black, 2.75 in L x 2.25 in H

Application

Commercial and Industrial Applications

Standards

UL File No E13399 | CSA File No 152105

Features

Ball nose configuration
Cam type connector
Commercial grade

Specifications

Amperage Rating:	400 A
Color:	Black
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	2.75 in L x 2.25 in H
Housing Material:	Santoprene™ TPV
Mounting Type:	Panel
Series:	18 Series
Voltage Rating:	600 VAC
Wire Size:	2 to 4/0 AWG
