18R22-G LEV

Name: 18R22-G LEV
Brand: Leviton Manufacturing
SKU: 18R22-G LEV
Availability: OutOfStock

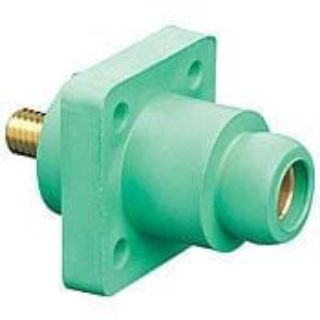

Leviton® 18R22-G 18 Series Insulated Female Single Pole Cam Receptacle With Stud, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 18R22-G

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Insulated Female

Description

Leviton's 18 Series Single pole ball nose cam-type devices are also rated to 400 Amps, and are typically favored by the broadcasting and welding industries

Leviton® Single Pole Cam Receptacle, Insulated Female, Series: 18 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud, Brass Contact, Santoprene TPV Housing, NEMA 3R, Panel Mount, 3/4 in Stud Size 1/2-13 UNC-2A Thread, Green, 2-3/4 in L x 2-1/4 in H

Application

Commercial and Industrial Applications

Standards

CSA 152105 Certified | UL File No. E13399

Features

Santoprene TPV insulator is shatter and crack proof
Positive locking connection maintains its integrity even when subjected to vibration
Receptables are interoperable and interchangeable with any competitive products
Ball nose with 90 deg angled elevation

Specifications

Amperage Rating:	400 A
Color:	Green
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	2-3/4 in L x 2-1/4 in H
Housing Material:	Santoprene TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	18 Series
Specifications:	3/4 in Stud Size 1/2-13 UNC-2A Thread
Voltage Rating:	600 VAC
Wire Size:	2 to 4/0 AWG
