Actual Product May Vary From Image

18RA-6FX TB

Name: 18RA-6FX TB
Brand: Thomas & Betts
SKU: 18RA-6FX TB
Price: 2.05 USD
Availability: InStock

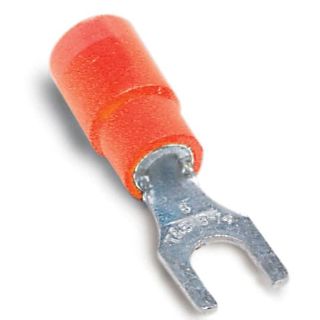

EXP INS VINYL FORK TERM, 22-16, No6

Manufacturer: Thomas & Betts

Manufacturer part number: 18RA-6FX

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	100	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$2.05

Qty:

Product Details

Type

Vinyl Insulated Fork Terminal

Description

Expanded Vinyl-Insulated Fork Terminal, Length .94 Inches, Width .25 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Standards

UL E9809

Features

Fork teminals allow easy installation since the mounting screw does not have to be completely removed. These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation

Specifications

Color:	Red
Country of Origin:	US
Harmonized Code:	8536904000
Material:	Copper
Voltage Rating:	600 V
Wire Size:	22-16 AWG

Resources

Spec Sheet
