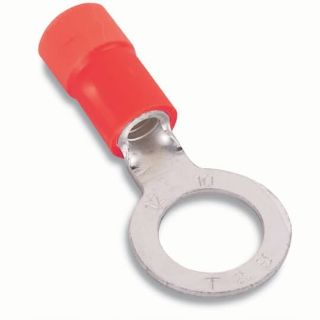

Actual Product May Vary From Image

18RA-8X TB

Name: 18RA-8X TB
Brand: Thomas & Betts
SKU: 18RA-8X TB
Price: 1.88 USD
Availability: InStock

EXP INS VINYL RING TERM, 22-16, #8,

Manufacturer: Thomas & Betts

Manufacturer part number: 18RA-8X

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	100	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.88

Qty:

Product Details

Brand Name

Sta-Kon

Type

Ring Terminal

Description

Expanded Insulated Vinyl Ring Terminal For Wire Range 22-16 Stud Size #8, Red

Features

Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won´t fall free even if the mounting screw loosens.

Specifications

Color:	Red
Country of Origin:	US
Finish:	Electro -Tin Plated
Flammability Rating:	UL 94 V-0
Insulation Type:	Expanded Insulated Vinyl
Material:	Copper
Maximum Insulation:	.170 IN
Stock Thickness:	.03
Stud Size:	#8
Temperature Rating:	105?C
Voltage Rating:	600V
Wire Size:	22-16

Resources

Spec Sheet
