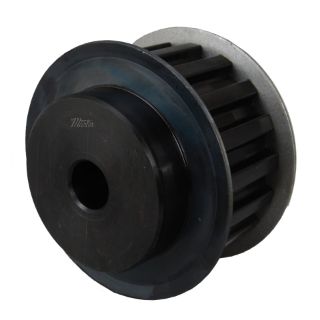

Actual Product May Vary From Image

18XH200 MSG

Name: 18XH200 MSG
Brand: Martin Sprocket & Gear
SKU: 18XH200 MSG
Price: 256.59 USD
Availability: OutOfStock

Martin 18XH200 Solid Type DF-1 Stock Timing Pulley, 1 to 2-5/8 in Minimum Plain/Reborable Bore, 4.9055 in OD, 18 Grooves, 5.013 in Dia Pitch, 2-9/16 in W Face

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 18XH200

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$256.59

Qty:

Product Details

Brand Name

Martin

Type

Solid Type DF-1

Description

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD Bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 1 to 2-5/8 in Bore Dia, 4.9055 in Outside Dia, 5.013 in, 18 Grooves, 7/8 in Pitch, 2-9/16 in Face Width, 5.562 in Flange Dia, 3-11/16 in Hub Dia, 7/8 in Hub Projection, 3-7/16 in Overall Length, For Use With: 2 in W Type X Belt, Steel

Application

Wood Products, Environmental, Recycling, Food and Beverage, Conveying, Air Cooled Heat Exchanger and Trapezoidal Tooth Belts

Features

Trapezoidal tooth form
Non slip toothed drive with no metal to metal contact
No lubrication needed
Exhibit many of the best features of chain drives and belt drives
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	1 to 2-5/8 in
Bore Type:	Minimum Plain/Reborable
Country of Origin:	US
Face Width:	2-9/16 in
Flange Diameter:	5.562 in
Hub Diameter:	3-11/16 in
Hub Projection:	7/8 in
Material:	Steel
Number of Grooves:	18
Outside Diameter:	4.9055 in
Overall Length:	3-7/16 in
Pitch:	7/8 in
Pitch Diameter:	5.013 in
Suitable For Use With:	2 in W Type X Belt
