1904-8M-30 GAT

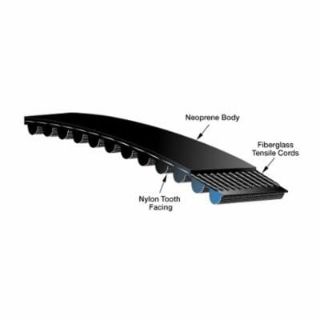

Picture of 1904-8M-30 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
1904-8M-30
CBT Inventory
1
Vendor Inventory
Loading...
CBT - Cincinnati
1
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$210.03 / EA

Description

Brand Name

Gates®

Description

PowerGrip® HTD® belts have a larger, more robust tooth profile for increased capacity, as compared to timing belts.
Gates® PowerGrip® HTD® Synchronous Belt, Series: 9293, 238 Teeth, 8 mm Pitch, 1904 mm Overall Length, 30 mm Width, -30 to 180 deg F, Curved Tooth Profile, Neoprene, Fiberglass Reinforced Material

Application

Data Storage, Hand Power Tools, Postage Handling, Food Processors, Office Machines, Centrifuges, Money Handling, Medical Diagnostic, Sewing Machines, Ticket Dispensers, Robotics, Vending Machines and Vacuum Cleaners

Standards

RMA Standard

Features

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
  • Neoprene body provides protection against grime, grease, oil and moisture
  • Thirty percent increase in horsepower ratings, as compared to traditional timing belts

Specifications

Country of Origin:BE
Material:Neoprene
Number of Teeth:238
Overall Length:1904 mm
Pitch:8 mm
Reinforced Material:Fiberglass
Series:9293
Temperature Range:-30 to 180 deg F
Tooth Profile:Curved
Width:30 mm

Products Specifications

Brand Name
Gates
Pitch
8M
