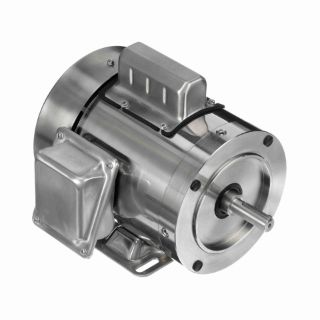

Actual Product May Vary From Image

191475.00 LEE

Name: 191475.00 LEE
Brand: Leeson Electric
SKU: 191475.00 LEE
Price: 960.45 USD
Availability: OutOfStock

LEESON® 191475.00 C-Face AC Motor With Base, Totally Enclosed Fan Cooled Enclosure, 1/2 hp, 115/230 VAC, 60 Hz, 56C Frame, 1800 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 191475.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$960.45

Qty:

Product Details

Brand Name

LEESON®

Type

C-Face

Description

This member of LEESON® family of tough ducks is designed for long life in demanding washdown applications. LEESON® FHP Washguard® SST all stainless motors are stainless SteelTough! built with all stainless steel external components to prevent corrosion and well sealed against moisture and condensation to protect internal components, the Washguard® SST all stainless steel motors are able to withstand the severe washdown environments found in the food processing, chemical processing, and beverage industries.

LEESON® AC Motor, C-Face, Fan & Blower Motors Application, 1/2 hp, 115/230 VAC, 8.2/4.1 A, 60 Hz Frequency, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Dia Shaft, CCW Rotation, 1.149 Service Factor, Ball Bearing, 40 deg C, Insulation Class: Class F, Stainless Steel, 11.1 in L Dimensions

Standards

CE | CSA Certified | UL Listed

Features

10:1 Constant Torque Operation

Specifications

Amperage Rating:	10 A
Application Type:	Compressor Motors, Fan & Blower Motors, OEM Replacement Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Depth:	3.46 in
Dimensions:	11.1 in L
Enclosure Type:	DP
Frame:	184T
Frequency Rating:	60 Hz
Full Load Amperage:	1.1 A
Gear Ratio:	124:1
Gear Type:	13F40-34G
Height:	7-1/2 in
Horsepower:	1/2 hp
Housing Material:	Die Cast Aluminum
Insulation Class:	Class F
Insulation Type:	Class F
Material:	Cast Iron
Maximum Speed:	21 rpm
Mounting Type:	Wall
Overhung Load:	235 lb
Phase:	1
Rotation:	CCW
Series:	13 Series
Service Factor:	1
Shaft Diameter:	3/4 in
Shaft Length:	1-1/2 in
Shaft Size:	1-1/8 in Dia
Speed:	1740 rpm
Suitable For Use With:	Leeson 174307 and 174308 DC Motor Control
Temperature Rating:	40 deg C
Torque Rating:	135 in-lb
Voltage Rating:	115/230 VAC
Width:	5.63 in
