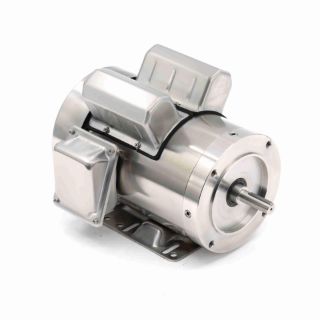

Picture of 191481.00 LEE
Actual Product May Vary From Image

191481.00 LEE

LEESON® Washguard® 191481.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 115/230 VAC, 60 Hz, 1 ph Phase, 56C Frame, 1725 rpm Speed, C-Face/Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 191481.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,211.00

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Capacitor Start Motors, Inverter Ready Special Features, 1.5 hp, 115/230 VAC, 15.8/7.9 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 13.3 in L x 8.7 in H Dimensions

Application

Food Processing, Baking Industry, Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed

Features

Capacitor Start Motors, Inverter Ready

Specifications

Amperage Rating:15.8/7.9 A
Bearing Type:Ball
Country of Origin:CN
Dimensions:13.3 in L x 8.7 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:56C
Frequency Rating:60 Hz
Horsepower:1.5 hp
Insulation Class:Class F
Material:Stainless Steel
Mounting Type:C-Face/Rigid Base
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1.15
Shaft Size:0.63 in Dia x 1.88 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Torque Rating:4.5 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/230 VAC
