Actual Product May Vary From Image

191575.00 LEE

Name: 191575.00 LEE
Brand: Leeson Electric
SKU: 191575.00 LEE
Price: 1,076.51 USD
Availability: OutOfStock

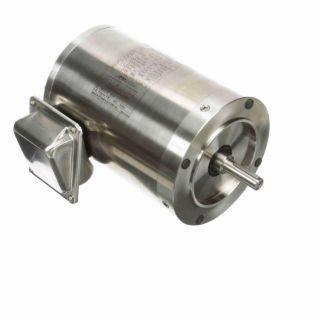

LEESON® Washguard® 191575.00 4-Pole Squirrel Cage Induction Run Washdown Motor, Totally Enclosed Not Ventilated Enclosure, 1 hp, 208 to 230/460 V, 60/50 Hz, 3 ph Phase, 56C Frame, 1750 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 191575.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,076.51

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Squirrel Cage Induction Run

Description

LEESON® Washguard® Washdown Motor, 4-Pole Squirrel Cage Induction Run, Special Features: Washdown Duty Motors, 1 hp, 208 to 230/460 V, 3/1.5 A, 60/50 Hz, 3 ph, 1750 rpm, 1 Speed, Totally Enclosed Not Ventilated, 56C Frame, 0.625 in Dia x 2.06 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Round Mount, 40 deg C, Insulation Class: Class F, Stainless Steel, 11 in L

Standards

CE Certified | CSA Certified | UL Recognized

Features

Washdown Duty Motors

Specifications

Amperage Rating:	3/1.5 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	11 in L
Enclosure Type:	Totally Enclosed Not Ventilated
Frame:	56C
Frequency Rating:	60/50 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 V
