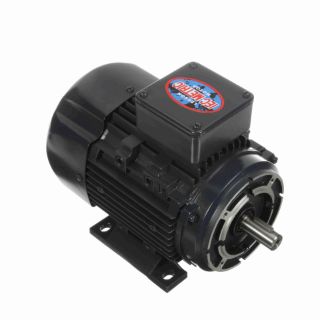

Actual Product May Vary From Image

192049.00 LEE

Name: 192049.00 LEE
Brand: Leeson Electric
SKU: 192049.00 LEE
Price: 1,332.00 USD
Availability: OutOfStock

LEESON® 192049.00 6-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.75 hp, 230/460 VAC, 60 Hz, 3 ph Phase, D80C Frame, 1130 rpm Speed, B3 Flange/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 192049.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CRUSH BEARINGS & DRIVES - LEXINGTON
0	0	0
CRUSH BEARINGS & DRIVES - LOUISVILLE
0
Loading...

$1,332.00

Qty:

Product Details

Brand Name

LEESON®

Type

6-Pole Continuous Duty

Description

LEESON® AC Motor, 6-Pole Continuous Duty, IEC Metric Motors Special Features, 0.75 hp, 230/460 VAC, 2.7/1.35 A, 60 Hz Frequency, 3 ph ph, 1130 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, D80C Frame, 0.75 in Dia x 1.57 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 54 ft-lb Torque, B3 Flange/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Aluminum, 10:1 Variable Torque Speed, 11.1 in L Dimensions

Application

Machine Tools, Textile Tools, Textile Machinery, Other Equipment, Commercial and Industrial Applications

Standards

CSA Certified | CSA LR33543 | UL E57948 Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	2.7/1.35 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	11.1 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	D80C
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class F
Material:	Aluminum
Mounting Type:	B3 Flange/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.75 in Dia x 1.57 in L
Speed:	1130 rpm
Temperature Rating:	40 deg C
Torque Rating:	54 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
