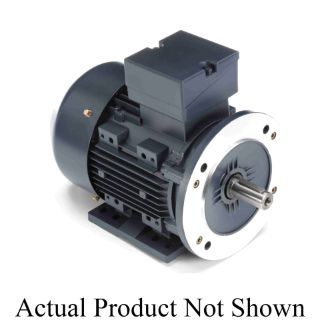

Actual Product May Vary From Image

192203.00 LEE

Name: 192203.00 LEE
Brand: Leeson Electric
SKU: 192203.00 LEE
Price: 723.07 USD
Availability: OutOfStock

LEESON® 192203.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, D90S Frame, 1745 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 192203.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CRUSH BEARINGS & DRIVES - LEXINGTON
0	0	0
CRUSH BEARINGS & DRIVES - LOUISVILLE
0
Loading...

$723.07

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, IEC Metric Motors Special Features, 1.5 hp, 230/460 VAC, 4.2/2.1 A, 60 Hz Frequency, 3 ph ph, 1745 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, D90S Frame, 1 in Dia x 1.96 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.51 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Aluminum, 10:1 Variable Torque Speed, 12.83 in L Dimensions

Application

Machine Tools, Textile Tools, Textile Machinery, Other Equipment, Commercial and Industrial Applications

Standards

CSA Certified | CSA LR33543 | UL E57948 Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	4.2/2.1 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	12.83 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	D90S
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Aluminum
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1 in Dia x 1.96 in L
Speed:	1745 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.51 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
