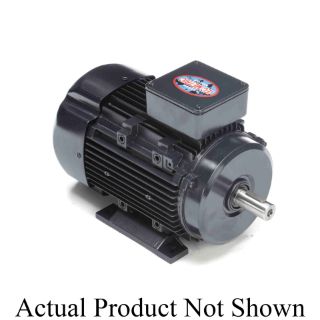

Picture of 192207.00 LEE
Actual Product May Vary From Image

192207.00 LEE

LEESON® 192207.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 230/460 VAC, 60 Hz, 3 ph Phase, D90L Frame, 1745 rpm Speed, B3 Flange/Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 192207.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$788.70

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, IEC Metric Motors Special Features, 2 hp, 230/460 VAC, 5.4/2.7 A, 60 Hz Frequency, 3 ph ph, 1745 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, D90L Frame, 1 in Dia x 1.96 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 6.02 ft-lb Torque, B3 Flange/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Aluminum, 10:1 Variable Torque Speed, 12.83 in L Dimensions

Application

Machine Tools, Textile Tools, Textile Machinery, Other Equipment, Commercial and Industrial Applications

Standards

CSA Certified | CSA LR33543 | UL E57948 Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:5.4/2.7 A
Bearing Type:Ball
Country of Origin:CN
Dimensions:12.83 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:D90L
Frequency Rating:60 Hz
Horsepower:2 hp
Insulation Class:Class F
Material:Aluminum
Mounting Type:B3 Flange/Rigid Base
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:1 in Dia x 1.96 in L
Speed:1745 rpm
Temperature Rating:40 deg C
Torque Rating:6.02 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:230/460 VAC
