Actual Product May Vary From Image

193319.60 LEE

Name: 193319.60 LEE
Brand: Leeson Electric
SKU: 193319.60 LEE
Price: 3,440.20 USD
Availability: OutOfStock

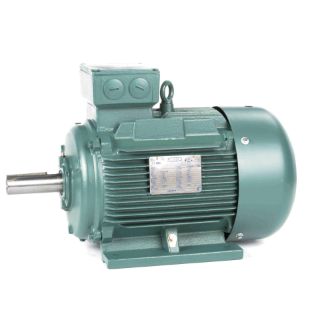

LEESON® 193319.60 4-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 20 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 160L Frame, 1770 rpm Speed, B3 Flange/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 193319.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3,440.20

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous-Duty

Description

LEESON® AC Motor, 4-Pole Continuous-Duty, IEC Metric Motors Special Features, 20 hp, 230/460 VAC, 50/25 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 160L Frame, 1.63 in Dia x 4.33 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 59.5 ft-lb Torque, B3 Flange/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 23.62 in L Dimensions

Application

Machine Tools, Textile Tools, Textile Machinery, Other Equipment, Commercial and Industrial Applications

Standards

CSA Certified | CSA LR62104 | UL E57948 Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	50/25 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	23.62 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	160L
Frequency Rating:	60 Hz
Horsepower:	20 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	B3 Flange/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.63 in Dia x 4.33 in L
Speed:	1770 rpm
Temperature Rating:	40 deg C
Torque Rating:	59.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
