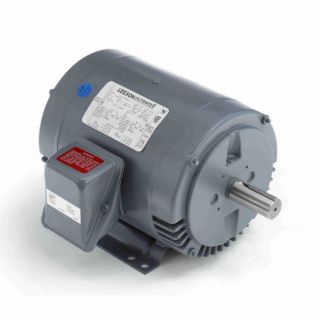

Actual Product May Vary From Image

199689.00 LEE

Name: 199689.00 LEE
Brand: Leeson Electric
SKU: 199689.00 LEE
Availability: OutOfStock

LEESON® Ultimate e® 199689.00 2-Pole Continuous Duty AC Motor, DP Enclosure, 5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 182T Frame, 3460 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 199689.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 2-Pole Continuous Duty, Application Type: General Purpose AC Motors, 5 hp, 230/460 VAC, 12.4/6.2 A, 60 Hz, 3 ph, 3460 rpm, 1 Speed, DP, 182T Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 7.6 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.72 in L x 11.33 in W x 8.75 in H

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Squirrel cage inverter rated

Specifications

Amperage Rating:	12.4/6.2 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	13.72 in L x 11.33 in W x 8.75 in H
Enclosure Type:	DP
Frame:	182T
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	3460 rpm
Temperature Rating:	40 deg C
Torque Rating:	7.6 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
