1A5000-34 WOO

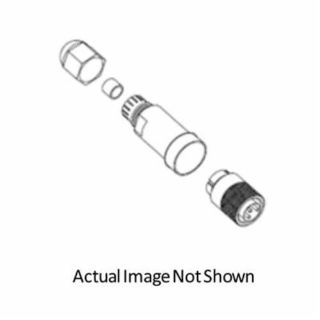

Brad® Mini-Change® 1A5000-34 130017 Size A Female Internal Thread Field Attachable Connector, 600 VAC/VDC, 8 A, 24 to 15 AWG
Manufacturer: Molex/Woodhead
Manufacturer part number: 1A5000-34
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$31.22

Product Details

Brand Name

Brad®

Type

Size A Female Internal Thread

Description

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.
Brad® Mini-Change® Field Attachable Connector, Size A Female Internal Thread, Series: 130017, 600 VAC/VDC, 8 A, 24 to 15 AWG Cable, Environmental Conditions: -20 to 80 deg C Temperature, IP67 deg of Protection

Application

For rugged, sealed connector in industrial application

Standards

CSA File No. LR6837

Features

  • Patented Quad-Beam™ contact design for reliability and low-resistance
  • Allows easy conversion to quick connect or the repair of damaged, molded connectors
  • Delivering optimum conductivity, Brad® Mini-Change® connectors from Molex offer the broadest selection of miniature connectors in the industrial
  • Connectors are the standard by which all miniature connectors are measured
  • Mini-Change® connectors are available in a wide variety of circuits and configurations
  • With Mini-Change® connectors, industrial device wiring is easier to install and maintain
  • To ensure a consistent, low-resistance connection, the patented Quad Beam™ female contact is used
  • Connectors are sealed to provide IP67 protection
  • An anti-vibration feature prevents the coupler from loosening, even under extreme conditions
  • Internal thread connection
  • 5.08 to 11.43 mm Dia cable
  • Single keyway
  • Nickel plated brass coupling nut
  • Gold over copper plating mating

Specifications

Amperage Rating:8 A
Cable Size:24 to 15 AWG
Country of Origin:DE
Environmental Conditions:-20 to 80 deg C Temperature, IP67 deg of Protection
Series:130017
Voltage Rating:600 VAC/VDC
