1BA16BH0L36 THO

Name: 1BA16BH0L36 THO
Brand: Thomson Industries
SKU: 1BA16BH0L36 THO
Availability: OutOfStock

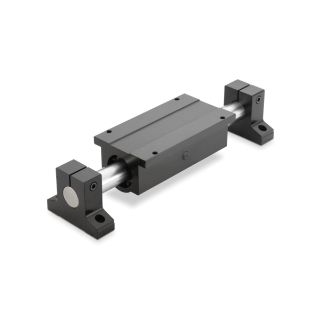

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

1BA16BH0L36

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

End/Low Supported

Description

The 1BA end support (Industry Standard Inch) RoundRail™ linear guide features the new patented Super Smart Ball Bushing® bearings with up to 216X the life or 6X the load capacity of conventional bearings, all with increased life within the same envelope. The RoundRail™ Advantage, the inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing, allows for ultra smooth travel when mounted to wider tolerance prepared surfaces.

Thomson® RoundRail™ Linear Guide, End/Low Supported, Series: 1BA, 1 in Diameter Nominal, 36 in Linear Guide Length, 28 in Stroke Length, Twin Closed Pillow Block Bearing/Bushing, ASB End Support, 3000 lb Dynamic Load, 10 fps Maximum, 0.28 in Mounting Hole, 185 deg F, Black Anodized Aluminum Alloy Support, 3.25 in W x 2.562 in H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

Easy to install, smooth operation, self-aligning and high speed
Increased life within the same envelope
RoundRail™ linear guides feature the new patented Super Smart Ball Bushing® bearings for up to 216X the life or 6X the load capacity of conventional bearings
Cost savings
End supported for gantry style or bridge applications
The inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing allows for ultra smooth travel when mounted to wider tolerance prepared surfaces
The Super Smart Ball Bushing® bearing the most technologically advanced and most robust linear bearing in the world
Corrosion resistant versions for maximum performance in harsh environments
Used to provide increased stability or torque resistance in linear system applications
No table top

Includes

(1) Super Smart Ball BushingÂ® Twin Closed Pillow Block, (2) ASB Type Shaft End Support Blocks and (1) 60 CaseÂ® LinearRaceÂ® Round Shaft

Specifications

Bearing/Bushing Type:	Twin Closed Pillow Block
Country of Origin:	MX
Dimensions:	3.25 in W x 2.562 in H
End Support Type:	ASB
Linear Guide Length:	36 in
Load Capacity:	3000 lb Dynamic
Maximum Speed:	10 fps
Mounting Hole Size:	0.28 in
Nominal Diameter:	1 in
Series:	1BA
Stroke Length:	28 in
Support Material:	Black Anodized Aluminum Alloy
Temperature Rating:	185 deg F
