1BS102 BSF

Name: 1BS102 BSF
Brand: Bussmann
SKU: 1BS102 BSF
Price: 409.84 USD
Availability: OutOfStock

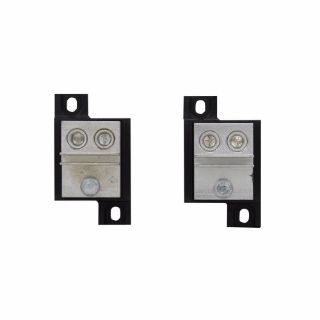

Bussmann 1BS102 1BS10x Modular Universal Fuse Block, 600 V, 400 A, 6 AWG to 250 kcmil Wire, 1 Pole

Manufacturer: Bussmann

Manufacturer part number: 1BS102

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$409.84

Qty:

Product Details

Brand Name

Bussmann

Type

Modular Universal

Alternate Supplier #

Grainger - 1EN86

Description

Bussmann series circuit protection products and services focus on downtime reduction, workplace safety and Code compliance for the industrial/MRO, OEM and construction markets. From electrical power fuses to fuse blocks and holders and engineering services, the Bussmann brand stands for protection you rely on.

Bussmann Fuse Block, Modular Universal, Series: 1BS10x, 600 V, 400 A, 1 Pole, Screw, 6 AWG to 250 kcmil Wire, Stud Mount, 150 deg C, For Use With: 300/600 VAC Class T High Speed Fuse, Phenolic, Black, 2.25 in W x 2.53 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA Certified | RoHS Compliant | UL Listed

Features

Zinc-plated steel studs/nut/washer
Molded black phenolic base

Specifications

Amperage Rating:	400 A
Color:	Black
Connection Type:	Screw
Country of Origin:	MX
Dimensions:	2.25 in W x 2.53 in H
Material:	Aluminum/Phenolic
Mounting Type:	Stud
Number of Poles:	1
Series:	1BS10x
Suitable For Use With:	300/600 VAC Class T High Speed Fuse
Temperature Rating:	150 deg C
Voltage Rating:	600 V
Wire Size:	6 AWG to 250 kcmil
