1C70SF BRN

Name: 1C70SF BRN
Brand: Regal Rexnord
SKU: 1C70SF BRN
Availability: OutOfStock

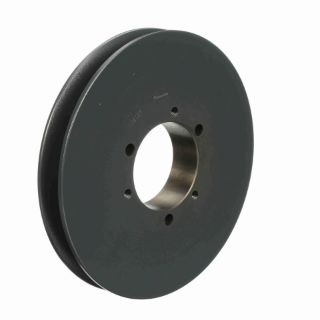

Browning® Classical Gripbelt® 1008077 Type D1 Single Groove Sheave, QD® Bore, 1/2 to 2-15/16 in Dia Bore, 7.4 in OD, 7.4 in Dia Pitch, 1-1/4 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1008077

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type D1

Description

Browning® Classical Gripbelt® Single Groove Sheave, Type D1, QD® Bore, 1/2 to 2-15/16 in Bore, 7.4 in OD, 7.4 in Pitch Diameter, 1-1/4 in Face Width, 29/32 in Hub Projection, SF Bushing, 2-5/32 in Overall Length, For Use With: C-Cross Section V-Belts, Cast Iron

Application

Agitators, Blowers and Exhausters, Belt Conveyors, Generators, Laundry Machinery, Machine Tools, Printing Machinery, Brick Machinery, Bucket Elevators, Exciters, Piston Compressors, Hammer Mils, Paper Mill Beaters, Piston Pumps, Positive Displacement Blowers and Rotary Pumps and Pulverizer Industries

Features

Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
Precision balanced
Easy-on/easy-off
QD® bushings can be reverse mounted

Specifications

Bore Diameter:	1/2 to 2-15/16 in
Bore Type:	QD®
Bushing Type:	SF
Country of Origin:	MX
Face Width:	1-1/4 in
Hub Projection:	29/32 in
Material:	Cast Iron
Outside Diameter:	7.4 in
Overall Length:	2-5/32 in
Pitch Diameter:	7.4 in
Suitable For Use With:	C-Cross Section V-Belts
