1CIF21 BSF

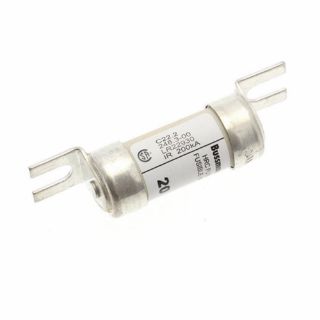

Bussmann 1CIF21 British Style HRCI-CA Industrial Low Voltage Non-Indicating Fuse, 1 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body
Manufacturer: Bussmann
Manufacturer part number: 1CIF21
Availability: Expected Leadtime 28 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

British Style HRCI-CA Industrial Low Voltage Non-Indicating

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.
Bussmann Fuse, British Style HRCI-CA Industrial Low Voltage Non-Indicating, Series: CIF21, 1 A, 600 VAC/250 VDC, 200 kA Interrupt, 50 Hz, Offset Blade Terminal, Bolted-On Mount, Cartridge Body, Ceramic, 0.54 in Dia x 2.15 in L Body Size

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, For use in circuits subject to surge currents such as those caused by motors, transformers and other inductive loads, power distribution and control, safety and security systems

Standards

CE Certified | CSA C22.2 No. 106-M92 | RoHS Compliant

Features

  • Close sizing to loads allows using smaller and less costly switches
  • Provides a higher degree of short circuit protection
  • Helps protect motors against burnout from overloads

Specifications

Amperage Rating:1 A
Body Size:0.54 in Dia x 2.15 in L
Body Type:Cartridge
Country of Origin:HU
Frequency Rating:50 Hz
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Bolted-On
Series:CIF21
Terminal Type:Offset Blade
Voltage Rating:600 VAC
