1N120-11 LEV

Name: 1N120-11 LEV
Brand: Leviton
SKU: 1N120-11 LEV
Availability: OutOfStock

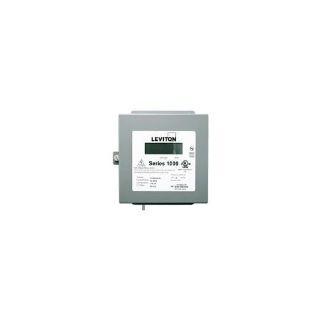

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton

Manufacturer part number:

1N120-11

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

1-Phase Line to Neutral 1-Element

Description

The Leviton® VerifEye™ series 1000 line of revenue-grade meters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, series 1000 m are easy to specify and install for new construction and retrofits.

Leviton® VerifEye™ Meter, 1-Phase Line to Neutral 1-Element, Series: 1000, 120 VAC, 0.01/100 A, LCD Display, Pulse Output Communication, Steel, 6.19 in W x 3.13 in D x 7.5 in H Dimensions

Application

Institutional, Industrial, Government, Commercial and Indoor Applications

Standards

ANSI C12.1 | ANSI C12.20 | cULus 916 | UL 916

Features

Equipped with an isolated pulse output channel
Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformer that conform to all applicable ANSI requirements or 1% accuracy split core current transformer
Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
Enclosure include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
Large LCD display shows kWh and instantaneous and peak demand with manual keyed reset
Load indicator LED verifies meter functionality
Reverse phase indicator LED illuminates if the meter is improperly installed

Specifications

Amperage Rating:	0.01/100 A
Communication:	Pulse Output
Country of Origin:	US
Dimensions:	6.19 in W x 3.13 in D x 7.5 in H
Display Type:	LCD
Material:	Steel
Series:	1000
Voltage Rating:	120 VAC
