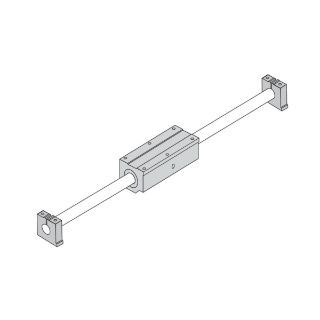

Actual Product May Vary From Image

1NAM12PM0L450 THO

Name: 1NAM12PM0L450 THO
Brand: Thomson Industries
SKU: 1NAM12PM0L450 THO
Availability: OutOfStock

Thomson® RoundRail™ 1NAM12PM0L450 End/Low Supported Linear Guide, 12 mm Dia Nominal, 450 mm L Linear Guide, 334 mm L Stroke

Manufacturer: Thomson Industries

Manufacturer part number: 1NAM12PM0L450

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Type

End/Low Supported

Description

The 1NA end support (Industry Standard Metric) RoundRail™ linear guide features the new patented Super Smart Ball Bushing® bearings with up to 216X the life or 6X the load capacity of conventional bearings. The Thomson® RoundRail™ advantage, the inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing, allows for ultra smooth travel when mounted to wider tolerance prepared surfaces.

Thomson® RoundRail™ Linear Guide, End/Low Supported, Series: 1NA, 12 mm Diameter Nominal, 450 mm Linear Guide Length, 334 mm Stroke Length, Twin Closed Pillow Block Bearing/Bushing, ASBM End Support, 160 lb Dynamic Load, 10 fps Maximum, 185 deg F, Aluminum Alloy Support, Gray Anodized, 43 mm W x 38 mm H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

Easy to install, smooth operation, self-aligning and high speed
Increased life within the same envelope
RoundRail™ linear guides feature the new patented Super Smart Ball Bushing® bearings for up to 216X the life or 6X the load capacity of conventional bearings
Cost savings
End supported for gantry style or bridge applications
The inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing allows for ultra smooth travel when mounted to wider tolerance prepared surfaces
The Super Smart Ball Bushing® bearing the most technologically advanced and most robust linear bearing in the world
Corrosion resistant versions for maximum performance in harsh environments
Used to provide increased stability or torque resistance in linear system applications
No table top

Includes

(1) Super Smart Ball BushingÂ® Twin Closed Pillow Block, (2) ASBM Type Shaft End Support Blocks and (1) 60 CaseÂ® LinearRaceÂ® Round Shaft

Specifications

Bearing/Bushing Type:	Twin Closed Pillow Block
Country of Origin:	MX
Dimensions:	43 mm W x 38 mm H
End Support Type:	ASBM
Finish:	Gray Anodized
Linear Guide Length:	450 mm
Load Capacity:	160 lb Dynamic
Maximum Speed:	10 fps
Nominal Diameter:	12 mm
Series:	1NA
Stroke Length:	334 mm
Support Material:	Aluminum Alloy
Temperature Rating:	185 deg F
