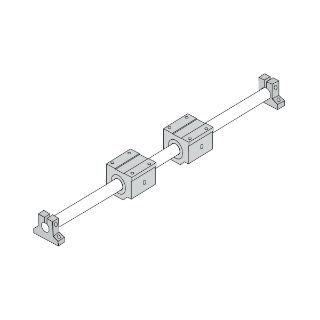

Actual Product May Vary From Image

1NAM16NN0L600 THO

Name: 1NAM16NN0L600 THO
Brand: Thomson Industries
SKU: 1NAM16NN0L600 THO
Availability: OutOfStock

Thomson® RoundRail™ 1NAM16NN0L600 End Supported Standard Linear Guide, 16 mm Dia Nominal, 600 mm L Linear Guide, 482 mm L Stroke

Manufacturer: Thomson Industries

Manufacturer part number: 1NAM16NN0L600

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Type

End Supported Standard

Description

The 1NA end support (Industry Standard Metric) RoundRail™ linear guide features the new patented Super Smart Ball Bushing® bearings with up to 216X the life or 6X the load capacity of conventional bearings. The Thomson® RoundRail™ advantage, the inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing, allows for ultra smooth travel when mounted to wider tolerance prepared surfaces.

Thomson® RoundRail™ Linear Guide, End Supported Standard, Series: 1NA, 16 mm Diameter Nominal, 600 mm Linear Guide Length, 482 mm Stroke Length, Single Closed Pillow Block Bearing/Bushing, SBM End Support, 800 lb Dynamic Load, 10 fps Maximum, 185 deg F, Iron Support, 50 mm W x 47 mm H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

Easy to install, smooth operation, self-aligning and high speed
Increased life within the same envelope
RoundRail™ linear guides feature the new patented Super Smart Ball Bushing® bearings for up to 216X the life or 6X the load capacity of conventional bearings
Cost savings
End supported for gantry style or bridge applications
The inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing allows for ultra smooth travel when mounted to wider tolerance prepared surfaces
The Super Smart Ball Bushing® bearing the most technologically advanced and most robust linear bearing in the world
Corrosion resistant versions for maximum performance in harsh environments
Used to provide increased stability or torque resistance in linear system applications
No table top

Includes

(2) Super Smart Ball BushingÂ® Single Closed Pillow Blocks, (2) SBM Type Shaft End Support Blocks and (1) 60 CaseÂ® LinearRaceÂ® Round Shaft

Specifications

Bearing/Bushing Type:	Single Closed Pillow Block
Country of Origin:	MX
Dimensions:	50 mm W x 47 mm H
End Support Type:	SBM
Linear Guide Length:	600 mm
Load Capacity:	800 lb Dynamic
Maximum Speed:	10 fps
Nominal Diameter:	16 mm
Series:	1NA
Stroke Length:	482 mm
Support Material:	Iron
Temperature Rating:	185 deg F
