1NAM30PN0L1500 THO

Name: 1NAM30PN0L1500 THO
Brand: Thomson Industries
SKU: 1NAM30PN0L1500 THO
Availability: OutOfStock

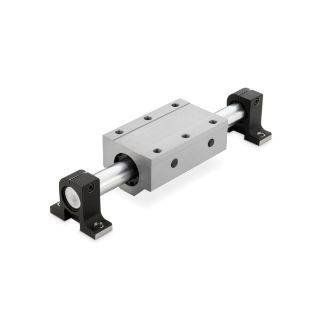

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

1NAM30PN0L1500

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

End Supported Standard

Description

The 1NA end support (Industry Standard Metric) RoundRail™ linear guide features the new patented Super Smart Ball Bushing® bearings with up to 216X the life or 6X the load capacity of conventional bearings. The Thomson® RoundRail™ advantage, the inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing, allows for ultra smooth travel when mounted to wider tolerance prepared surfaces.

Thomson® RoundRail™ Linear Guide, End Supported Standard, Series: 1NA, 30 mm Diameter Nominal, 1500 mm Linear Guide Length, 1292 mm Stroke Length, Twin Closed Pillow Block Bearing/Bushing, SBM End Support, 3730 lb Dynamic Load, 10 fps Maximum, 185 deg F, Iron Support, 84 mm W x 75 mm H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

Easy to install, smooth operation, self-aligning and high speed
Increased life within the same envelope
RoundRail™ linear guides feature the new patented Super Smart Ball Bushing® bearings for up to 216X the life or 6X the load capacity of conventional bearings
Cost savings
End supported for gantry style or bridge applications
The inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing allows for ultra smooth travel when mounted to wider tolerance prepared surfaces
The Super Smart Ball Bushing® bearing the most technologically advanced and most robust linear bearing in the world
Corrosion resistant versions for maximum performance in harsh environments
Used to provide increased stability or torque resistance in linear system applications
No table top

Includes

(1) Super Smart Ball BushingÂ® Twin Closed Pillow Block, (2) SBM Type Shaft End Support Blocks and (1) 60 CaseÂ® LinearRaceÂ® Round Shaft

Specifications

Bearing/Bushing Type:	Twin Closed Pillow Block
Country of Origin:	MX
Dimensions:	84 mm W x 75 mm H
End Support Type:	SBM
Linear Guide Length:	1500 mm
Load Capacity:	3730 lb Dynamic
Maximum Speed:	10 fps
Nominal Diameter:	30 mm
Series:	1NA
Stroke Length:	1292 mm
Support Material:	Iron
Temperature Rating:	185 deg F
