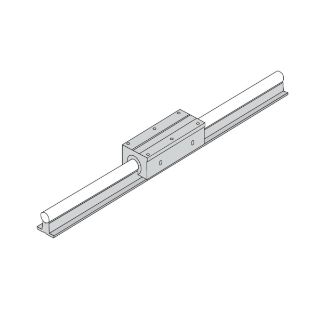

Actual Product May Vary From Image

1PAM25MW0L500 THO

Name: 1PAM25MW0L500 THO
Brand: Thomson Industries
SKU: 1PAM25MW0L500 THO
Availability: OutOfStock

Thomson® RoundRail™ 1PAM25MW0L500 Continuously Supported Standard Profile Linear Guide, 25 mm Dia Nominal, 500 mm L Linear Guide, 370 mm L Stroke

Manufacturer: Thomson Industries

Manufacturer part number: 1PAM25MW0L500

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Type

Continuously Supported Standard Profile

Description

The 1PA continuous support (Industry Standard Metric) RoundRail™ linear guide features the new patented Super Smart Ball Bushing® bearings with up to 216X the life or 6X the load capacity of conventional bearings, all within the same envelope. The RoundRail™ advantage, the inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing, allows for ultra smooth travel when mounted to wider tolerance prepared surfaces.

Thomson® RoundRail™ Linear Guide, Continuously Supported Standard Profile, Series: 1PA, 25 mm Diameter Nominal, 500 mm Linear Guide Length, 370 mm Stroke Length, Twin Open Pillow Block Bearing/Bushing, SRAM End Support, 13400 N Dynamic Load, 10 fps Maximum, 185 deg F, Aluminum Alloy Rail, Gray Anodized, 78 mm W x 72 mm H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

High speed, smooth operation and easy to install
Increased life within the same envelope
RoundRail™ linear guides feature the new patented Super Smart Ball Bushing® bearings for up to 216X the life or 6X the load capacity of conventional bearings
Cost savings
Superior performance, continuously supported for maximum (down and side) load applications without concerns for shaft deflection
The inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing allows for ultra smooth travel when mounted to wider tolerance prepared surfaces
Unlimited travel lengths without concerns for machined reference edges or butt joint alignment
The Super Smart Ball Bushing® bearing the most technologically advanced and most robust linear bearing in the world
Used in continuously supported applications when rigidity is required
Fully supported, highest performance
No table top

Includes

(1) Super Smart Ball BushingÂ® Twin Open Pillow Block, (1) SRAM Series Continuous Shaft Support and (1) 60 CaseÂ® LinearRaceÂ® Round Shaft Support Rail Assembly

Specifications

Bearing/Bushing Type:	Twin Open Pillow Block
Country of Origin:	MX
Dimensions:	78 mm W x 72 mm H
End Support Type:	SRAM
Finish:	Gray Anodized
Linear Guide Length:	500 mm
Load Capacity:	13400 N Dynamic
Maximum Speed:	10 fps
Nominal Diameter:	25 mm
Rail Material:	Aluminum Alloy
Series:	1PA
Stroke Length:	370 mm
Temperature Rating:	185 deg F
