1TB80 BRN

Name: 1TB80 BRN
Brand: Regal Rexnord
SKU: 1TB80 BRN
Price: 222.40 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1002385

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$222.40 / EA

Description

Brand Name

Browning®

Type

Arm Type 16

Description

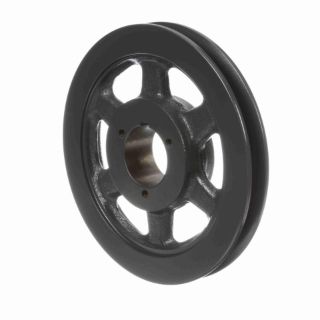

Browning® Classical Gripbelt® Single Groove Sheave, Arm Type 16, Series: TB Series, Split Taper Bore, 1/2 to 1-3/4 in Bore, 8.35 in OD, 7.8 in (A)/8.3 in (B) Pitch Diameter, 1 in Face Width, 3 in Diameter Hub, 25/32 in Hub Projection, P1 Bushing, 2-9/64 in Overall Length, For Use With: AB Cross Section V-Belts, Cast Iron

Application

Agitators, Blowers and Exhausters, Belt Conveyors, Generators, Laundry Machinery, Machine Tools, Printing Machinery, Brick Machinery, Bucket Elevators, Exciters, Piston Compressors, Hammer Mils, Paper Mill Beaters, Piston Pumps, Positive Displacement Blowers and Rotary Pumps and Pulverizer Industries

Features

Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
Precision balanced
Easy-on/easy-off
Split Taper® bushings keyed to shaft and hub
External key provides positive drive with no torque on the cap screws
Highest torque carrying capacity in the Browning® bushing product line
Double split barrel assures true concentricity
Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers

Specifications

Bore Diameter:	1/2 to 1-3/4 in
Bore Type:	Split Taper
Bushing Type:	P1
Country of Origin:	MX
Face Width:	1 in
Hub Diameter:	3 in
Hub Projection:	25/32 in
Material:	Cast Iron
Outside Diameter:	8.35 in
Overall Length:	2-9/64 in
Pitch Diameter:	7.8 in (A)/8.3 in (B)
Series:	TB Series
Suitable For Use With:	AB Cross Section V-Belts
