1VA16FA0L12 THO

Name: 1VA16FA0L12 THO
Brand: Thomson Industries
SKU: 1VA16FA0L12 THO
Availability: OutOfStock

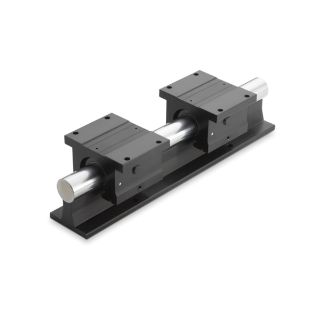

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

1VA16FA0L12

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Continuously Supported Standard Profile

Description

Thomson® FluoroNyliner® bushing bearings are made from the most advanced polymers available. Used with Thomson® stainless steel 60 Case® LinearRace® shafting, the FluoroNyliner® linear guides offer increased bearing load capacities, enhanced obtainable travel life and improved performance when compared to competitive assemblies. Offered in continuous support, end support and unsupported configurations.

Thomson® RoundRail™ Linear Guide, Continuously Supported Standard Profile, Series: 1VA, 1 in Diameter Nominal, 12 in Linear Guide Length, 6.74 in Stroke Length, Single Open FluoroNyliner® Pillow Block Bearing/Bushing, SRA End Support, 7000 lb Static Load, 0.28 in Mounting Hole, -400 to 550 deg F, Aluminum Alloy Rail, Black Anodized, 3.25 in W x 2.937 in H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

Corrosion resistant, smooth, quiet and industry standard envelope
Thomson® new FluoroNyliner® bushing bearings that are made from the most advanced polymer components to achieve maximum performance levels
Contamination resistance, the FluoroNyliner® linear guides are practically immune to adverse environments, such as water wash-down conditions and magnetic interference
Self-aligning pillow blocks for ease of use
Increased bearing load capacities or PV ratings and obtainable travel life, when used with Thomson® stainless steel, 60 Case® LinearRace® shaft, when compared to competitive assemblies
Specification conformance with FDA and non-lubricated applications
For linear and rotary motion applications
Used as a load support, transport and guidance solution
Used in continuously supported applications when rigidity is required
No table top

Includes

(2) Bushing BearingÂ® FluoroNylinerÂ® Self-Aligning Single Open Pillow Blocks, (1) SRA Series Continuous Shaft Support and (1) 60 CaseÂ® LinearRaceÂ® Stainless Steel Round Shaft Support Rail Assembly

Specifications

Bearing/Bushing Type:	Single Open FluoroNyliner® Pillow Block
Country of Origin:	MX
Dimensions:	3.25 in W x 2.937 in H
End Support Type:	SRA
Finish:	Black Anodized
Linear Guide Length:	12 in
Load Capacity:	7000 lb Static
Mounting Hole Size:	0.28 in
Nominal Diameter:	1 in
Rail Material:	Aluminum Alloy
Series:	1VA
Stroke Length:	6.74 in
Temperature Rating:	-400 to 550 deg F
