Actual Product May Vary From Image

1VA20HA0L72 THO

Name: 1VA20HA0L72 THO
Brand: Thomson Industries
SKU: 1VA20HA0L72 THO
Availability: OutOfStock

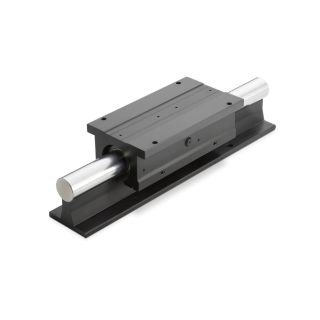

Thomson® RoundRail™ 1VA20HA0L72 Continuously Supported Standard Profile Linear Guide, 1-1/4 in Dia Nominal, 72 in L Linear Guide, 64-1/2 in L Stroke

Manufacturer: Thomson Industries

Manufacturer part number: 1VA20HA0L72

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Type

Continuously Supported Standard Profile

Description

Thomson® FluoroNyliner® bushing bearings are made from the most advanced polymers available. Used with Thomson® stainless steel 60 Case® LinearRace® shafting, the FluoroNyliner® linear guides offer increased bearing load capacities, enhanced obtainable travel life and improved performance when compared to competitive assemblies. Offered in continuous support, end support and unsupported configurations.

Thomson® RoundRail™ Linear Guide, Continuously Supported Standard Profile, Series: 1VA, 1-1/4 in Diameter Nominal, 72 in Linear Guide Length, 64-1/2 in Stroke Length, Twin Open FluoroNyliner® Pillow Block Bearing/Bushing, SRA End Support, 10200 lb Static Load, 0.34 in Mounting Hole, -400 to 550 deg F, Aluminum Alloy Rail, Black Anodized, 4 in W x 3-5/8 in H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

Corrosion resistant, smooth, quiet and industry standard envelope
Thomson® new FluoroNyliner® bushing bearings that are made from the most advanced polymer components to achieve maximum performance levels
Contamination resistance, the FluoroNyliner® linear guides are practically immune to adverse environments, such as water wash-down conditions and magnetic interference
Self-aligning pillow blocks for ease of use
Increased bearing load capacities or PV ratings and obtainable travel life, when used with Thomson® stainless steel, 60 Case® LinearRace® shaft, when compared to competitive assemblies
Specification conformance with FDA and non-lubricated applications
For linear and rotary motion applications
Used as a load support, transport and guidance solution
Used in continuously supported applications when rigidity is required
No table top

Includes

(1) Bushing BearingÂ® FluoroNylinerÂ® Self-Aligning Twin Open Pillow Block, (1) SRA Series Continuous Shaft Support and (1) Stainless Steel 60 CaseÂ® LinearRaceÂ® Round Shaft Support Rail Assembly

Specifications

Bearing/Bushing Type:	Twin Open FluoroNyliner® Pillow Block
Country of Origin:	MX
Dimensions:	4 in W x 3-5/8 in H
End Support Type:	SRA
Finish:	Black Anodized
Linear Guide Length:	72 in
Load Capacity:	10200 lb Static
Mounting Hole Size:	0.34 in
Nominal Diameter:	1-1/4 in
Rail Material:	Aluminum Alloy
Series:	1VA
Stroke Length:	64-1/2 in
Temperature Rating:	-400 to 550 deg F
