1VP65 1 3/8 AD

Name: 1VP65 1 3/8 AD
Brand: IDC-USA
SKU: 1VP65 1 3/8 AD
Price: 112.08 USD
Availability: InStock

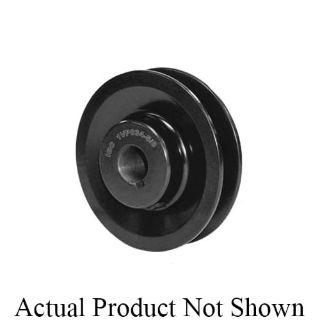

Actual Product May Vary From Image

Product Details

Manufacturer:

IDC-USA

Manufacturer part number:

IDC 1VP065-1-3/8

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$112.08 / EA

Description

Brand Name

IDC Select®

Type

Heavy Duty Type 2

Description

IDC Select® variable pitch sheaves 1VL and 1 and 2VP designs are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Variable Pitch Sheave, Heavy Duty Type 2, 1-3/8 in Bore, 6-1/2 in OD, 6.4 in Pitch Diameter, 1 Grooves, 1.25 in Face Width, 2.16 in Overall Length, For Use With: 4L/A, 5L/B and 5V Cross Section V-Belts, Cast Iron, Baked Enamel

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Industrial Applications

Standards

ASTM Specified | SAE Standard

Features

Precision machined from gray cast iron
Statically balanced
Cast iron sheaves should not exceed 6500 fpm rim speed
Special or dynamic balancing should be considered when speeds exceed 5000 fpm
4.7 to 5.7 in Dia pitch 4L(A)/4.8 to 6 in Dia pitch 5L(B)/5.2 to 6.4 in Dia pitch 5V
0.88 to 1.25 in W face

Specifications

Bore Diameter:	1-3/8 in
Face Width:	1.25 in
Finish:	Baked Enamel
Material:	Cast Iron
Number of Grooves:	1
Outside Diameter:	6-1/2 in
Overall Length:	2.16 in
Pitch Diameter:	6.4 in
Suitable For Use With:	4L/A, 5L/B and 5V Cross Section V-Belts
