2 5V 1090 SK MSG

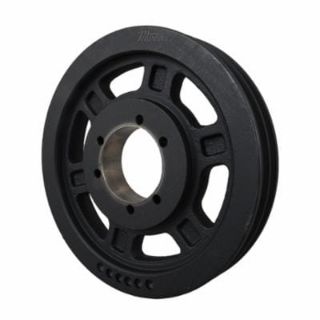

Martin Hi-Cap® 2 5V 1090 SK Arm/Spoke Type C-3 Wedge Stock Sheave, 1/2 to 2-5/8 in QD® Bushed Bore, 10.9 in OD, 2 Grooves, 10.8 in Dia Pitch, 1.688 in W Face
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 2 5V 1090 SK
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
$313.16

Product Details

Brand Name

Martin

Type

Arm/Spoke Type C-3

Description

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.
Martin Hi-Cap® Wedge Stock Sheave, Arm/Spoke Type C-3, QD® Bushed Bore, 1/2 to 2-5/8 in Bore, 10.9 in OD, 10.8 in Pitch Diameter, 2 Grooves, 1.688 in Face Width, SK Bushing, 1-15/16 in Overall Length, For Use With: 5V-Cross Section V-Belts, Cast Iron

Features

  • Class 30 Gray Iron
  • Tolerances adhere to industry guidelines
  • Precise machining and processes ensure consistent finish and high quality
  • Statically balanced with maximum rim speed marked on print

Specifications

Bore Diameter:1/2 to 2-5/8 in
Bore Type:QD® Bushed
Bushing Type:SK
Country of Origin:US
Face Width:1.688 in
Material:Cast Iron
Number of Grooves:2
Outside Diameter:10.9 in
Overall Length:1-15/16 in
Pitch Diameter:10.8 in
Suitable For Use With:5V-Cross Section V-Belts
