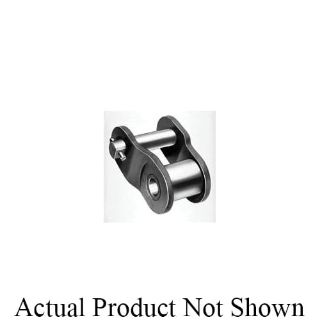

Actual Product May Vary From Image

200-4 O/L MOR

Name: 200-4 O/L MOR
Brand: Regal Rexnord
SKU: 200-4 O/L MOR
Availability: OutOfStock

Morse® 128076 Standard Duty Offset Link With Cotter Pin, 200 Chain, 2-1/2 in Pitch, 11.571 in OAW, 0.781 in Dia Pin, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 128076

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Standard Duty

Description

Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.

Morse® Offset Link, Standard Duty, 200 Chain, 2-1/2 in Pitch, 11.571 in Overall Width, 0.781 in Pin Dia, 2.334 in Link Plate Height, 0.312 in Link Plate Thickness, Steel

Application

Oil Industry Machinery, Paper Industry Machinery, Rubber, Plastic Industry Equipment and Textile Industries

Standards

ANSI B29.1

Features

4-strands

Specifications

Chain Size:	200
Country of Origin:	CN
Link Plate Height:	2.334 in
Link Plate Thickness:	0.312 in
Material:	Steel
Overall Width:	11.571 in
Pin Diameter:	0.781 in
Pitch:	2-1/2 in
