200A20 MSG

Product Details

Manufacturer part number:
200A20
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Martin

Type

Type A Single Strand Solid Reboreable

Description

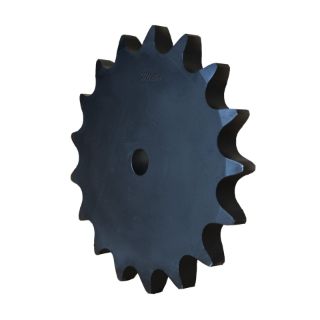

A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.
Martin Roller Chain Sprocket, Type A Single Strand Solid Reboreable, 1.5 to 13.254 in Bore, 17.284 in OD, #200 Chain, 20 Teeth, 2-1/2 in Pitch, 15.9811 in Pitch Diameter, 1.389 in Length Through Bore, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:1.5 to 13.254 in
Chain Size:#200
Country of Origin:US
Length Through Bore:1.389 in
Material:Steel
Number of Teeth:20
Outside Diameter:17.284 in
Pitch:2-1/2 in
Pitch Diameter:15.9811 in
