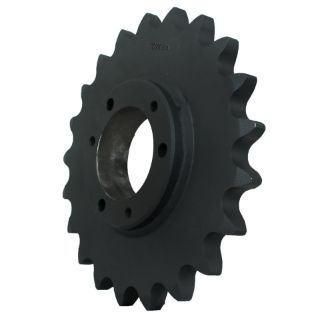

Actual Product May Vary From Image

200M20 MSG

Name: 200M20 MSG
Brand: Martin Sprocket & Gear
SKU: 200M20 MSG
Price: 1,015.38 USD
Availability: OutOfStock

Martin 200M20 Type C Single Strand Welded Bushed Roller Chain Sprocket, 2 to 5-1/2 in Dia Bore, 17.284 in OD, #200 Chain, 20 Teeth, 2-1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 200M20

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,015.38

Qty:

Product Details

Brand Name

Martin

Type

Type C Single Strand Welded Bushed

Description

QD (quick detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Roller Chain Sprocket, Type C Single Strand Welded Bushed, 2 to 5-1/2 in Bore, 17.284 in OD, #200 Chain, 20 Teeth, 2-1/2 in Pitch, 15.9811 in Pitch Diameter, 9-1/2 in Diameter Hub, 5-3/16 in Length Through Bore, QD® M Bushing, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out
Interchangeable with other manufacturer's QD® bushings
Manufactured of high carbon steel

Specifications

Bore Diameter:	2 to 5-1/2 in
Bushing Type:	QD® M
Chain Size:	#200
Hub Diameter:	9-1/2 in
Length Through Bore:	5-3/16 in
Material:	Steel
Number of Teeth:	20
Outside Diameter:	17.284 in
Pitch:	2-1/2 in
Pitch Diameter:	15.9811 in
