200MJ31-7 BSF

Name: 200MJ31-7 BSF
Brand: Bussmann
SKU: 200MJ31-7 BSF
Availability: OutOfStock

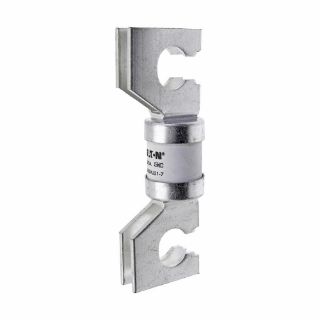

Bussmann 200MJ31-7 MJ31 British Standard Low Voltage Type J Feeder Pillar Fuse Link, 415 VAC, 200 A

Manufacturer: Bussmann

Manufacturer part number: 200MJ31-7

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Standard Low Voltage Type J Feeder Pillar

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Fuse Link, British Standard Low Voltage Type J Feeder Pillar, Series: MJ31, 415 VAC, 200 A, Rated Breaking Capacity: 80 kA, Stud Mount, 131 mm W x 30.8 mm D x 41 mm H

Application

Electrical Authorities in Distribution Pillars, Open Type Substation Boards, Heavy Duty Cutouts, Underground Connection Boxes and Industrial Applications

Standards

ASTA Certified | BS88 Part 2

Features

GU characteristics
Ideal for utility applications
Excellent cable protection

Specifications

Amperage Rating:	200 A
Country of Origin:	IN
Dimensions:	131 mm W x 30.8 mm D x 41 mm H
Mounting Type:	Stud
Rated Breaking Capacity:	80 kA
Series:	MJ31
Voltage Rating:	415 VAC
