200NHG1B BSF

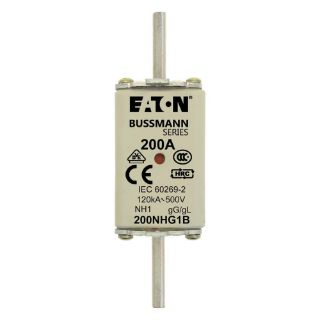

Picture of 200NHG1B BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
200NHG1B
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$219.07 / EA

Description

Brand Name

Bussmann

Type

Size 1 Class gG/gL Dual Indicator

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Bussmann NH Fuse Link, Size 1 Class gG/gL Dual Indicator, 500 V, 200 A, 47/63 Hz, Rated Breaking Capacity: 120 kA, Holder Mount, For Use With: Bussmann NH Size Photovoltaic Fuse, Ceramic, 135 mm L x 40 mm W x 63 mm H

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, Industrial Applications, Safety and Security Systems

Standards

CCC Certified | CE Certified | IEC 60269 | RoHS Compliant | UL Listed | VDE 0636

Features

  • Eaton's Bussmann series 500 VAC NH square bodied industrial fuse links are suitable for a wide variety of applications
  • Reliable dual indicator system
  • Low temperature rise
  • Steatite insulator, corrosion proof (aluminum) metal parts with full contact, silver plated copper blade construction

Specifications

Amperage Rating:200 A
Country of Origin:IN
Dimensions:135 mm L x 40 mm W x 63 mm H
Frequency Rating:45 to 62 Hz
Material:Ceramic
Mounting Type:Holder
Rated Breaking Capacity:120 kA
Series:NHG
Suitable For Use With:Bussmann NH Size Photovoltaic Fuse
Voltage Rating:500 V
