Actual Product May Vary From Image

200S16 BRN

Name: 200S16 BRN
Brand: Regal Rexnord
SKU: 200S16 BRN
Availability: OutOfStock

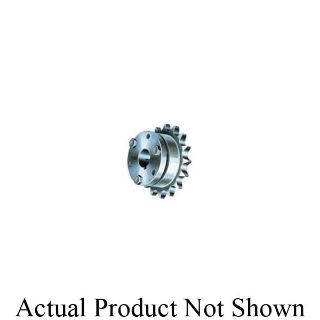

Browning® 1173319 Single Strand Roller Chain Sprocket, 1-7/8 in Dia Bore, 14.068 in OD, #200 Chain, 16 Teeth, 2-1/2 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1173319

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand, 1-7/8 in Bore Dia, 14.068 in Outside Dia, #200 Chain, 16 Teeth, 2-1/2 in Pitch, 12.815 in, 6.365 in Hub Dia, 6-3/4 in Length Through Bore, Type 6 Split Taper Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
External key higher torque capacity, aligns bolt holes
Provides key-to-key drive
Double split barrel improved clamping
Solid flange true concentricity
Longer barrel better support on the shaft
For use with 2-1/2 in pitch ANSI chain

Specifications

Bore Diameter:	1-7/8 in
Bushing Type:	Type 6 Split Taper
Chain Size:	#200
Country of Origin:	CN
Hub Diameter:	6.365 in
Length Through Bore:	6-3/4 in
Material:	Steel
Number of Teeth:	16
Outside Diameter:	14.068 in
Pitch:	2-1/2 in
Pitch Diameter:	12.815 in
