Actual Product May Vary From Image

2012 1 1/2 MSG

Name: 2012 1 1/2 MSG
Brand: Martin Sprocket & Gear
SKU: 2012 1 1/2 MSG
Price: 32.08 USD
Availability: InStock

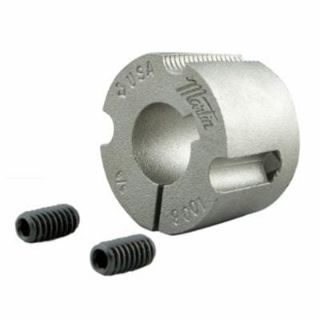

Martin 2012 1 1/2 Standard Taper Lock Bushing, 1-1/2 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 2012 1 1/2

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	2	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$32.08

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

Martin Taper Lock Bushing, Standard, 1-1/2 in Bore Dia, 2-3/4 in Barrel Dia, 3-7/8 in Hub Dia, 8 deg Taper, 2-5/8 in Bolt Circle, 2 Bolt Holes, 7/16 x 7/8 in Screw, 7150 in-lb, 1-1/4 in Overall Length, 3/8 x 3/16 in Keyway, Steel

Standards

ANSI B15.1

Features

Size 2012 bushing
TB Bushings are designed for flush mounting and do not have a flange

Specifications

Barrel Diameter:	2-3/4 in
Bolt Circle Diameter:	2-5/8 in
Bore Diameter:	1-1/2 in
Country of Origin:	US
Hub Diameter:	3-7/8 in
Keyway Size:	3/8 x 3/16 in
Material:	Steel
Number of Bolt Holes:	2
Overall Length:	1-1/4 in
Screw Size:	7/16 x 7/8 in
Taper:	8 deg
Torque Rating:	7150 in-lb
