2012 1 1/4 MSG

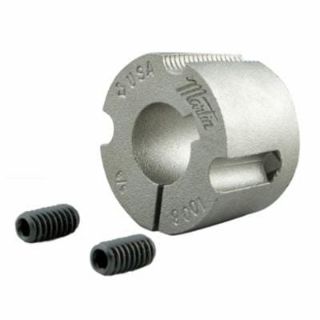

Picture of 2012 1 1/4 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
2012 1 1/4
CBT Inventory
7
Vendor Inventory
Loading...
CBT - CINCINNATI
3
CBT - SPRINGBORO
2
CBT - SIDNEY
2
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
7 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$34.71 / EA

Description

Brand Name

Martin

Type

Standard

Description

Martin Taper Lock Bushing, Standard, 1-1/4 in Bore Dia, 2-3/4 in Barrel Dia, 3-7/8 in Hub Dia, 8 deg Taper, 2-5/8 in Bolt Circle, 2 Bolt Holes, 7/16 x 7/8 in Screw, 7150 in-lb, 1-1/4 in Overall Length, 1/4 x 1/8 in Keyway, Steel

Standards

ANSI B15.1

Features

  • Size 2012 bushing
  • TB Bushings are designed for flush mounting and do not have a flange
  • Tolerances meet or exceed industry standards
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ taper bushings

Specifications

Barrel Diameter:2-3/4 in
Bolt Circle Diameter:2-5/8 in
Bore Diameter:1-1/4 in
Country of Origin:US
Hub Diameter:3-7/8 in
Keyway Size:1/4 x 1/8 in
Material:Steel
Number of Bolt Holes:2
Overall Length:1-1/4 in
Screw Size:7/16 x 7/8 in
Taper:8 deg
Torque Rating:7150 in-lb

Products Specifications

Bore Size
1-1/4"
Brand Name
Martin Sprocket & Gear
Bushing Series
2012
Measuring Units
Inch
Type
Tapered Bushing
