2012 1.3/8 GAT

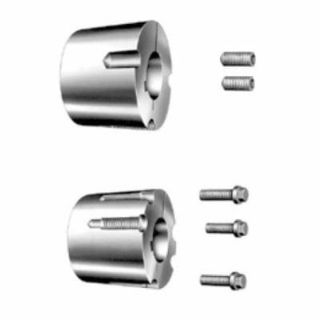

Picture of 2012 1.3/8 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Rubber
Manufacturer part number:
2012 1.3/8
product.name:
2012 1.3/8 GAT
CBT Inventory
6
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
1
CBT - Sidney
5
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$40.60 / EA

Description

Brand Name

Gates®

Type

Finished Bore

Description

Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8° taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Gates® Taper Lock Bushing, Finished Bore, 1-3/8 in Bore Dia, 2-3/4 in Barrel Dia, 4.38 in Hub Dia, 8 deg Taper, 2-5/8 in Bolt Circle, 2 Bolt Holes, 7/16-14 x 7/8 in Screw, 7150 in-lb, For Use With: Taper Lock Style Sheaves, Sprockets and Pulleys, 1-1/4 in Overall Length, 5/16 x 5/32 in Keyway, Cast Iron

Features

  • Size 2012 bushing
  • Bushings are made to precise tolerances

Specifications

Barrel Diameter:2-3/4 in
Bolt Circle Diameter:2-5/8 in
Bore Diameter:1-3/8 in
Country of Origin:US
Hub Diameter:4.38 in
Keyway Size:5/16 x 5/32 in
Material:Cast Iron
Number of Bolt Holes:2
Overall Length:1-1/4 in
Screw Size:7/16-14 x 7/8 in
Suitable For Use With:Taper Lock Style Sheaves, Sprockets and Pulleys
Taper:8 deg
Torque Rating:7150 in-lb

Products Specifications

Brand Name
Gates
