2012 42MM AD

Product Details

Manufacturer:
Manufacturer part number:
IDC 2012-42MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

IDC Select®

Type

Finished Bore

Description

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

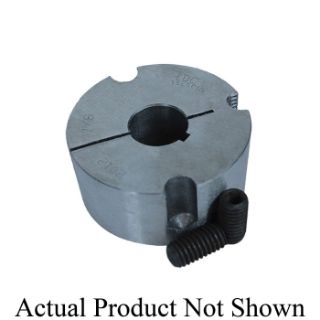

IDC Select® Taper-Lock® Bushing, Finished Bore, 42 mm Bore Dia, 2-3/4 in Barrel Dia, 8 deg Taper, 2-5/8 in Bolt Circle, 7/16-14 UNC Screw, 31 N/sq-m, 1-1/4 in Overall Length, 12 x 3.3 mm Keyway, Nodular Graphite Cast Iron

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Standard Industrial Applications

Standards

ANSI Specified | ASTM A536/A536-84 | SAE Standard

Features

  • Flush mount - clean and compact
  • 2012 Taper-Lock® bushing

Includes

5 mm Hex Setscrew

Specifications

Barrel Diameter:2-3/4 in
Bolt Circle Diameter:2-5/8 in
Bore Diameter:42 mm
Keyway Size:12 x 3.3 mm
Material:Nodular Graphite Cast Iron
Overall Length:1-1/4 in
Screw Size:7/16-14 UNC
Taper:8 deg
Torque Rating:31 N/sq-m
