2012 IDLR BUSH GAT

Product Details

Manufacturer:
Manufacturer part number:
2012-IDLR-BUSH
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Gates®

Description

Idlers are used to take-up extra belt length and provide adjustment for tensioning belt drives. Idler pulleys and sprockets can alter belt paths and clear obstructions.

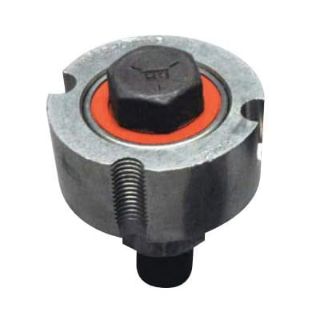

Gates® Taper Lock Idler Bushing, 3/4 in Bore Dia, 3 Bolt Holes, 7/16-14 x 7/8 in Screw, 3-5/16 in Overall Length

Application

For fixed center distance drives or multi-pulley drives requiring free-spinning pulleys or sprockets

Features

  • Size 2012 bushing
  • Idler sprockets, flat idlers and idler bushings contain sealed ball bearings and an integral shaft for mounting to adjustable idler brackets
  • Lubrication and maintenance are not required
  • A perfect solution for customizing belt drives
  • Turn standard V-belt pulleys or synchronous belt sprockets into a free-spinning idler/tensioner

Specifications

Bore Diameter:3/4 in
Country of Origin:US
Number of Bolt Holes:3
Overall Length:3-5/16 in
Screw Size:7/16-14 x 7/8 in
