Actual Product May Vary From Image

2012X9/16 BRN

Name: 2012X9/16 BRN
Brand: Regal Rexnord
SKU: 2012X9/16 BRN
Availability: OutOfStock

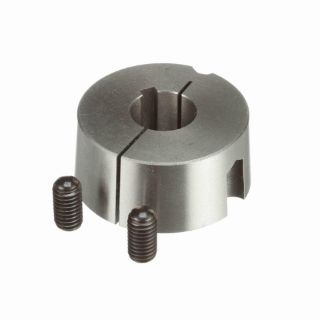

Browning® 3749223 Taper Lock Bushing, 9/16 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3749223

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Description

Browning® Taper Lock Bushing, 9/16 in Bore Dia, 2-3/4 in Barrel Dia, 1-1/2 in/ft Taper, 2-5/8 in Bolt Circle, 2 Bolt Holes, 7/16 x 7/8 in Screw, 7150 in-lb, For Use With: Browning® Sprockets and HPT Chain Synchronous Belt Drives, 1-1/4 in Overall Length, 1/8 x 1/16 in Keyway, Steel

Application

Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Features

Size 2012 bushing
Mounts flush in products no protruding flanges to interfere with the drive
Key to key drive cap screws act as an external key
1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft

Specifications

Barrel Diameter:	2-3/4 in
Bolt Circle Diameter:	2-5/8 in
Bore Diameter:	9/16 in
Country of Origin:	CN
Keyway Size:	1/8 x 1/16 in
Material:	Steel
Number of Bolt Holes:	2
Overall Length:	1-1/4 in
Screw Size:	7/16 x 7/8 in
Suitable For Use With:	Browning® Sprockets and HPT Chain Synchronous Belt Drives
Taper:	1-1/2 in/ft
Torque Rating:	7150 in-lb
