20224-MB FAG

Name: 20224-MB FAG
Brand: INA
SKU: 20224-MB FAG
Price: 1,844.60 USD
Availability: OutOfStock

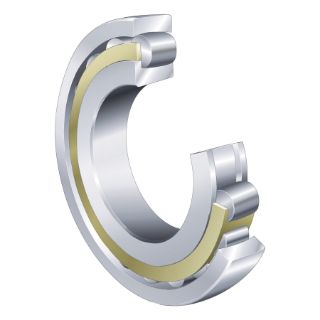

FAG 20224-MB Cylindrical Bore Barrel Roller Bearing, 120 mm Dia Bore, 215 mm OD, 1 Row, 40 mm W, 415000 N Load

Manufacturer: INA

Manufacturer part number: 20224-MB

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,844.60

Qty:

Product Details

Brand Name

FAG

Type

Cylindrical Bore

Description

Barrel roller bearings are single-row, self-aligning roller bearings. They comprise solid outer rings with a concave raceway, solid inner rings with two ribs and a cylindrical or tapered bore as well as barrel rollers with cages. The bearings cannot be dismantled. Barrel roller bearings are particularly suitable where high radial shock type loads occur and misalignments must be compensated. They have only a low axial load carrying capacity.

FAG Barrel Roller Bearing, Cylindrical Bore, Series: 202, 120 mm Bore, 215 mm OD, 1 Rows, 40 mm Width, Open Closure, 415000 N Load, Solid Brass Cage, 3350 rpm Maximum, 200 deg C

Features

Barrel roller bearings are suitable for compensating angular misalignments where there is skewing between the outer and inner ring
Where high radial shock type loads occur, as a result of the line contact
Where angular misalignments and high radial loads occur, but speed is not a priority
305000 N dynamic/415000 N static

Specifications

Bore Diameter:	120 mm
Cage Material:	Solid Brass
Closure Type:	Open
Country of Origin:	DE
Load Capacity:	415000 N
Maximum Speed:	3350 rpm
Number of Rows:	1
Outside Diameter:	215 mm
Series:	202
Temperature Rating:	200 deg C
Width:	40 mm
