20316R FER

Product Details

Manufacturer:
Manufacturer part number:
20316R
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 20 days
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Mersen

Type

Open Style

Description

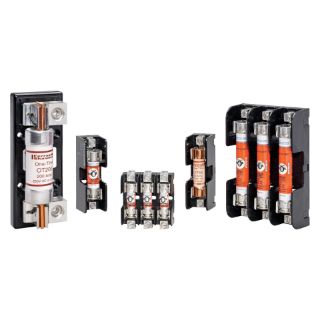

Mersen Class R fuse holders accommodate all Class R power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 V. 30, 60, 100 and 200 A fuse holders feature a unique adder block to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper.
Mersen Fuse Block, Open Style, 250 VAC, 30 A, 1 Pole, 1, Class: R, Screw, 14 to 10 AWG Wire, Threaded Mount, For Use With: A2D-R, A2K-R and TR-R Series Fuse, Glass Reinforced Polycarbonate, 3 in L x 1.25 in W x 1.38 in H

Standards

RoHS Compliant | UL 4248-12 (Class R) File No. E52283 | CSA C22.2 Class 6225/32192

Features

200 kA short circuit current rating

Specifications

Amperage Rating:30 A
Class:R
Connection Type:Screw
Country of Origin:MX
Dimensions:3 in L x 1.25 in W x 1.38 in H
Material:Glass Reinforced Polycarbonate
Mounting Type:Threaded
Number of Phases:1
Number of Poles:1
Suitable For Use With:A2D-R, A2K-R and TR-R Series Fuse
Voltage Rating:250 VAC
Wire Size:14 to 10 AWG

Products Specifications

Brand Name
Ferraz Shawmut
Class
Class R
Type
Open Style Fuse Block
