203CMTP05 Q210 BRN

Name: 203CMTP05 Q210 BRN
Brand: Regal Rexnord
SKU: 203CMTP05 Q210 BRN
Availability: OutOfStock

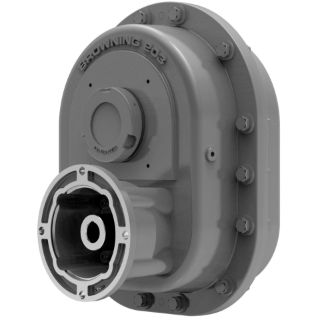

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

PD0027

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Double Reduction Type CMTP

Description

Shaft mount reducers are enclosed helical gear reducers with a hollow output. They are mounted directly on the input shaft of the driven machine and are supported by the shaft and torque arm arrangement or motor mount frame. This eliminates the need for additional components to transmit torque from the reducer to the equipment.

Browning® TorqTaper® Plus Shaft Mount Reducer, Double Reduction Type CMTP, 5:1 Gear Ratio, 1 hp, C-Face Quilled Input, Tapered Bore Output, 1.38 in Input, 2-3/16 in Output, 350 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/180.07 in-lb Output, 5.26 in Centre Distance, 1/4 x 1/4 x 2-3/4 in Input Keyway, 80 % Efficiency, Synthetic/Mineral Oil Lubrication, 12.88 in L x 14.14 in W x 16.16 in H

Application

Aggregate and Cement, Agriculture, Grain, Minerals and Mining, Unit Handling, Water and Wastewater

Standards

AGMA Standard

Features

Exclusive taper bushing, single TorqTaper® bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
Eliminate belt guards, belt drives and motor mounts
Combine with intelligear for variable speed control
Metal key, provides positive torque transmission
Non metallic quill liner, eliminates fretting and allows for easier motor removal
Bearing supported quill input, minimizes shaft wobble and increases seal life
Q210 quill motor mounting style
Standard Bearings, Commercially available Tapered Roller Bearings provide maximum overhung load capacity
Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement
Options and Accessories, Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options

Specifications

Centre Distance:	5.26 in
Country of Origin:	US
Dimensions:	12.88 in L x 14.14 in W x 16.16 in H
Efficiency:	80 %
Gear Ratio:	5:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Size:	1.38 in
Input Type:	C-Face Quilled
Keyway Size:	1/4 x 1/4 x 2-3/4 in Input
Lubrication Type:	Synthetic/Mineral Oil
Output Maximum Speed:	350 rpm
Output Size:	2-3/16 in
Output Type:	Tapered Bore
Torque Rating:	36.013 in-lb Input/180.07 in-lb Output
