203HMTP25 9T SAE-A 2 BRN

Name: 203HMTP25 9T SAE-A 2 BRN
Brand: Regal Rexnord
SKU: 203HMTP25 9T SAE-A 2 BRN
Availability: OutOfStock

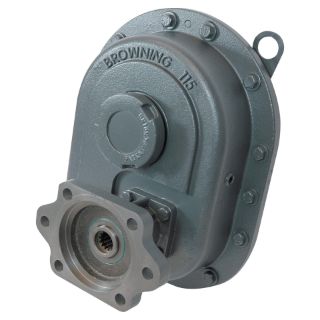

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

PD0010

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Double Reduction Type HMTP

Description

Shaft mount reducers are enclosed helical gear reducers with a hollow output. They are mounted directly on the input shaft of the driven machine and are supported by the shaft and torque arm arrangement or motor mount frame. This eliminates the need for additional components to transmit torque from the reducer to the equipment.

Browning® TorqTaper® Plus Shaft Mount Reducer, Double Reduction Type HMTP, 25:1 Gear Ratio, 1 hp, Involute Spline Input, Tapered Bore Output, 2-3/16 in Output, 70 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/900.34 in-lb Output, 5.26 in Centre Distance, 80 % Efficiency, Synthetic/Mineral Oil Lubrication, Hydraulic Mount, 12.88 in L x 12.11 in W x 16.16 in H

Application

Aggregate and Cement, Agriculture, Grain, Minerals and Mining, Unit Handling, Water and Wastewater

Standards

AGMA Standard

Features

Exclusive taper bushing, single TorqTaper® bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
For applications where electric motors are not available, such as portable equipment
Compatible with many hydraulic motors currently used in similar applications, standard SAE mounting patterns
Can be configured with screw conveyor components or as a shaft mounted reducer
Patented mounting system, barrier seal system and increased ratings
Replaces all popular hydraulic shaft mounted reducers
9T SAE-A 2 hydraulic motor mounting style
Standard Bearings, Commercially available Tapered Roller Bearings provide maximum overhung load capacity
Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement
Options and Accessories, Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options

Specifications

Centre Distance:	5.26 in
Country of Origin:	US
Dimensions:	12.88 in L x 12.11 in W x 16.16 in H
Efficiency:	80 %
Gear Ratio:	25:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Type:	Involute Spline
Lubrication Type:	Synthetic/Mineral Oil
Mounting Type:	Hydraulic
Output Maximum Speed:	70 rpm
Output Size:	2-3/16 in
Output Type:	Tapered Bore
Torque Rating:	36.013 in-lb Input/900.34 in-lb Output
