203PPG21 FS50387K TKN

Name: 203PPG21 FS50387K TKN
Brand: Timken
SKU: 203PPG21 FS50387K TKN
Price: 17.68 USD
Availability: OutOfStock

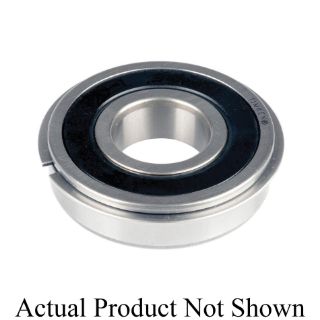

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

203PPG21Z3FS50387K

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$17.68 / EA

Description

Brand Name

Timken®

Type

Light Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

Timken®, 203PPG21Z3FS50387K, Deep Groove Radial Ball Bearing, Light Straight Bore, Series: 200, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Dual Pop-In Seal Closure, 2380 lb Dynamic/1070 lb Static Load, Cold Rolled Steel Cage, 17647.05 rpm Grease/17647.05 rpm Oil Maximum, -50 to 120 deg C

Application

Aircraft, Construction, Agricultural, Machine Tool and General Industry Applications

Standards

Precision Class ABEC 1

Features

Super finished raceways
Quiet operation
Light 200 series have a close dimensional balance between bore, outside diameter and width making them well suited for applications with light to medium loads and high speed

Specifications

Bearing Material:	Steel
Bore Diameter:	17 mm
Cage Material:	Cold Rolled Steel
Closure Type:	Dual Pop-In Seal
Load Capacity:	2380 lb Dynamic/1070 lb Static
Maximum Speed:	17647.05 rpm Grease/17647.05 rpm Oil
Number of Rows:	1
Outside Diameter:	40 mm
Series:	200
Temperature Rating:	-50 to 120 deg C
Width:	12 mm
